The HWK 109-509 was a German liquid-fuel bipropellant rocket engine that powered the Messerschmitt Me 163 and Bachem Ba 349 aircraft. It was produced by Hellmuth Walter Kommanditgesellschaft (HWK) commencing in 1943.

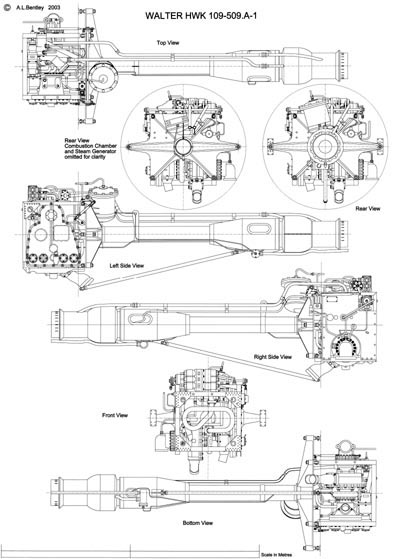

A-1: The first series production engine was used in the Messerschmitt Me 163 B from August 1944. The thrust here was adjustable between 100 kp (1 kN) and 1600 kp (15.7 kN (3,500 lbf)).
Other Variants
A-0: Pre-production model, manufactured from May 1943. The thrust of this engine was regulated between 300 kp (2.9 kN) and 1500 kp (14.7 kN (3,300 lbf)).
A-1: The first series production engine was used in the Messerschmitt Me 163 B from August 1944. The thrust here was adjustable between 100 kp (1 kN) and 1600 kp (15.7 kN (3,500 lbf)).
A-2: Version for the Messerschmitt Me 163B-1a. Weighing only 100 kg (220 lb) complete, this engine consisted of two main assemblies, the roughly-cubical shape framed forward assembly comprising the turbine housing, the fuel pumps geared to the turbine shaft, the control box, a pressure-reducing valve and the electric starter motor, with the aft assembly made up of the combustion chamber, connected to the fore unit by a cylindrical “thrust-tube” containing pipes which carried fuel to the combustion chamber’s individual injector jets. The thrust was adjustable between 200 kp (2 kN (450 lbf)) and a maximum of 1700 kp (16.7 kN (3,800 lbf)).
B-1: Increased performance version of the A-1. This engine had a second, “cruising” combustion chamber, nicknamed the Marschofen, just below the main combustion chamber, with an additional thrust of 300 kp (2.9 kN (650 lbf)). This auxiliary chamber proved necessary due to the actual T-Stoff oxidizer consumption of the main unit, at nearly 5 kg/s, exceeding estimates by 100%. Thrust from main chamber adjustable between 100 kp (1 kN (220 lbf)) and 2000 kp (19.6 kN (4,400 lbf)).
C-1: Dual-chamber motor like the B-series, based on the uprated version of the A-2. The main combustion chamber gave between 400 kp (3.9 3.9 kN (880 lbf)) and 2000 kp (19.6 kN (4,400 lbf)), auxiliary chamber 400 kp (3.9 kN (880 lbf)). To be used in the Me 263 (Ju 248).
D-1: Variant of the C-1 for use in the improved B-series airframes of the Bachem Ba 349 Natter. Engine designed to be recovered by parachute, along with the entire rear section with empennage.
